| » Features and Advantages |
- Fully Automatic Operation
- Easy Operation and Maintenance
- Low Power Consumption
- Low Cake water Content
- High solid material recovery rate
- Wide Application with its variable size and installation space
|
 |
|

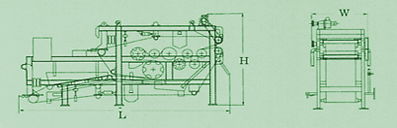

| » NP-TYPE DIMENSION & MODEL |
|
|
|
|
|

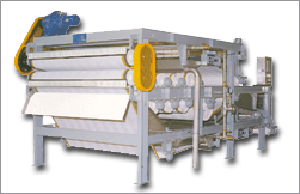

NP Type BELT PRESS FILTER |
NP-TYPE(8) |
NP-TYPE(10) |
|
Specification |
Model |
|
NP-500 |
NP-650 |
NP-1000 |
NP-1500 |
NP-2000 |
NP-2500 |
NP-3000 |
|
Power
(KW) |
Main
Body |
Main
Drive |
0.4 |
0.4 |
0.75 |
1.5 |
1.5 |
2.2 |
|
|
Air
Compressor |
0.4/0.75 |
0.4/0.75 |
0.4/0.75 |
0.75 |
0.75 |
0.75 |
0.75 |
|
Filter Cloth Width (mm) |
500 |
650 |
1000 |
1500 |
2000 |
2500 |
3000 |
|
Treating Capacity m3/Hr |
0.5~3.0 |
1.5~4.5 |
3~6.5 |
4~9.5 |
5~13 |
7~15 |
8~20 |
|
Outline Dimension |
L (mm) |
4620 |
4620 |
4620 |
4880 |
4880 |
4900 |
4900 |
|
W (mm) |
1080 |
1230 |
1580 |
2170 |
2650 |
3340 |
3940 |
|
H (mm) |
2310 |
2310 |
2380 |
2700 |
2700 |
2725 |
2725 |
|
Approx. Weight (kg) |
1950 |
2700 |
3200 |
5200 |
7300 |
11400 |
13500 |
|
Height of building
for
installation H (mm) |
4000 |
4000 |
4000 |
4600 |
4600 |
4800 |
4800 | |
|
|
