Product SPE Type Belt Press Filter

Belt Press Filter
» Features and Advantages
  • Capable to increase 50 times pressure comparing to the existing Belt Press
  • 15% decrease of the average cake water content ratio
  • 30% decrease of dewatered cake production
  • New high pressure type (Endless Type)
  • Belt Press Filter
» Working Picture of SPE and principal

Traveling speed: 1M/min

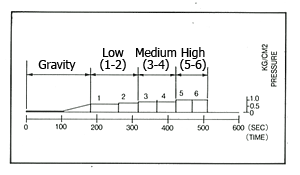

NP & SP Type Belt Press Filter
Dewatering Pressure With 6 Sections

Traveling speed: 1M/min

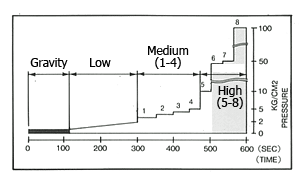

SPE Type Belt Press Filter
Dewatering Pressure With 8 Sections

～ 罹婁曖 Tension憶溘爾棻 10寡檜鼻 堅憶溘戲煎 驍熱 熱 氈朝 堅憶 Belt

～ 罹婁曖 Tension憶溘爾棻 10寡檜鼻 堅憶溘戲煎 驍熱 熱 氈朝 堅憶 Belt

～ 罹婁曖 Tension憶溘爾棻 10寡檜鼻 堅憶溘戲煎 驍熱 熱 氈朝 堅憶 Belt

» SPE-TYPE DIMENSION & MODEL

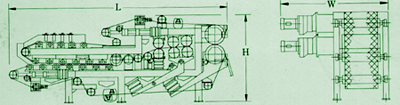

BELT PRESS FILTER SPE-TYPE DIMENSION
SPE-TYPE MODEL


Specification
SPE1000
SPE2000
SPE3000
Power
(KW)
Main
body
Main Drive
5.5
11
22
Air Compressor
0.75
0.75
0.75

Filter Cloth Width (mm)
1000
2000
3000
Treating Capacity m3/Hr
20~60
40~80
60~120
Outline Dimension
L(mm)
4940
5525
6000
W(mm)
2600
4000
5200
H(mm)
1985
2030
2300
Approx. Weight (Kg)
8000
16000
28000
≦ Note : The above content is subjected to change in order to improve




» Installation data of a SPE Type Belt Press Filter



Kinds of Sludge
Inlet Concentration
(%)
Polymer Concentration
(%/Ton.DS)
Treatment Capacity
(kg-ds/m.H)
Cake Water Content
(%)
Municipal sludge
Mixed sludge
2.0~6.0
0.3 ~ 0.8
240 ~ 700
50 ~ 60
Activated excess sludge
1.0 ~ 3.0
0.5 ~ 1.0
140 ~ 300
65 ~ 75
Night soil sludge
Digestive sludge
3.0 ~ 6.0
0.3 ~ 0.6
300 ~ 800
55 ~ 65
Activated excess sludge
1.0 ~ 3.0
0.5 ~ 1.0
100 ~ 320
65 ~ 75
Slaughter house
Activated excess sludge
1.0 ~ 2.5
0.6 ~ 1.0
100 ~ 280
68 ~ 78
Primary + excess activated + coagulated sludge
2.0 ~ 4.0
0.5 ~ 0.8
160 ~ 300
65 ~ 75
Industrial waste water sludge
Paper mill sludge
2.0 ~ 5.0
0.2 ~ 0.4
200 ~ 900
50 ~ 55
Tannery sludge
3.0 ~ 5.0
0.3 ~ 0.8
200 ~ 700
52 ~ 72
Dyeing sludge
1.5 ~ 2.5
0.4 ~ 1.0
100 ~ 280
68 ~ 75
Metal sludge
3.0 ~ 5.0
0.2 ~ 0.6
200 ~ 700
40 ~ 60
Gilding sludge
1.5 ~ 2.5
0.2 ~ 0.6
100 ~ 480
55 ~ 65
Coating sludge
1.5 ~ 2.5
0.6 ~ 0.9
100 ~ 260
62 ~ 72
Stone sludge
20 ~ 40
0.1 ~ 0.2
1200 ~ 1600
20 ~ 35
Food activated sludge
1.0 ~ 2.0
0.4 ~ 0.8
100 ~ 160
65 ~ 75
Chemical activated sludge
1.0 ~ 3.0
0.4 ~ 0.8
100 ~ 140
65 ~ 75
Marine sludge (SCAM+ Activated sludge)
1.0 ~ 2.5
0.4 ~ 0.8
100 ~ 140
65 ~ 75
Alcohol sludge (Sediment + activated sludge)
2.0 ~ 3.0
0.5 ~ 1.0
120 ~ 200
62 ~ 70
