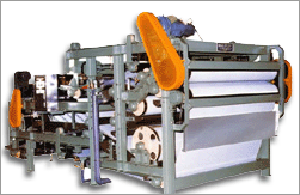

Product SP Type Belt Press Filter

Belt Press Filter
» Features and Advantages
  • Fully Automatic Operation
  • Easy Operation and Maintenance
  • Low Power Consumption
  • Low Cake water Content
  • High solid material recovery rate
  • Wide Application with its variable size and installation space
» SP-(M) TYPE DIMENSION & MODEL

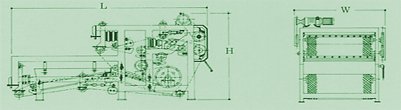

BELT PRESS SP-(M)TYPE DIMENSION
SP-TYPE MODEL


Specification
Model
SP-500
SP-650
SP-1000
SP-1500
SP-2000
SP-2500
SP-3000

Power
(KW)

Main
Body
Main
Drive
0.4
0.4
0.75
1.5
1.5
2.2
2.2
Air
Compressor
0.4/0.75
0.4/0.75
0.4/0.75
0.75
0.75
0.75
0.75
Filter Cloth Width (mm)
500
650
1000
1500
2000
2500
3000
Treating Capacity m3/Hr
0.5~3.0
1.5~4.5
3~6.5
4~9.5
5~13
7~15
8~20
Outline Dimension
L (mm)
3150
3785
3785
460
4620
4820
4820
W (mm)
1015
1300
1650
2170
2650
3340
3940
H (mm)
1970
2200
2200
2460
2460
2720
2720
Approx. Weight (kg)
1800
2500
3100
5000
7000
11000
13000
Height of building
for installation H (mm)
3500
4000
4000
4500
4500
5000
5000

» Main Parts

Auto Feeder
Drum Thickener
Multi-Hole Press Roller
Air Bellows
Air Cam Valves

» Experience Data of NP / SP Type Belt Press
Kinds of Sludge
Inlet S.S. Concentration
(%)
Polymer Concentration
(%/Ton.DS)
Treatment Capacity
(kg-ds/m.H)
Cake Water Content
(%)
Municipal sludge
Mixed sludge
2.0 ~ 6.0
0.3 ~ 0.8
120 ~ 350
62 ~ 75
Activated sludge
1.0 ~ 3.0
0.5 ~ 1.0
70 ~ 150
75 ~ 82
Sewage sludge
Digested sludge
3.0 ~ 6.0
0.3 ~ 0.6
150 ~ 400
62 ~ 76
Activated sludge
1.0 ~ 3.6
0.5 ~ 1.0
50 ~ 160
75 ~ 82
Slaughter house
Activated sludge
1.0 ~ 2.5
0.6 ~ 1.0
50 ~ 140
78 ~ 82
Primary + activated + coagulated sludge
2.0 ~ 4.0
0.5 ~ 0.8
80 ~ 150
74 ~ 82
Industrial waste water sludge
Paper mill sludge
2.0 ~ 5.0
0.2 ~ 0.4
100 ~ 450
55 ~ 70
Tannery sludge
3.0 ~ 5.0
0.3 ~ 0.8
100 ~ 350
62 ~ 78
Dyeing sludge
1.5 ~ 2.5
0.4 ~ 1.0
50 ~ 140
78 ~ 83
Metal sludge
3.0 ~ 5.0
0.2 ~ 0.6
100 ~ 350
62 ~ 75
Gilding sludge
1.5 ~ 2.5
0.2 ~ 0.6
50 ~ 240
65 ~ 78
Electroplating sludge
1.5 ~ 2.5
0.3 ~ 0.9
50 ~ 130
70 ~ 83
Sand & Stone sludge
20 ~ 40
0.1 ~ 0.2
600 ~ 800
25 ~ 35
Food activated sludge
1.0 ~ 2.0
0.4 ~ 0.8
50 ~ 80
82 ~ 85
Chemical activated sludge
1.0 ~ 3.0
0.4 ~ 0.8
50 ~ 70
83 ~ 87
Marine sludge (SCUM+ Activated sludge)
1.0 ~ 2.5
0.4 ~ 0.8
50 ~ 70
82 ~ 84
Alcohol sludge (Sediment + activated sludge)
2.0 ~ 3.0
0.5 ~ 1.0
60 ~ 100
77 ~ 82
